Hitachi EX60-2 Medium Sized Track Carrier Rollers with 12-18 Months Warranty and Forging/Casting Technique
Hitachi EX60-2 Medium Sized Track Carrier Rollers with 12-18 Months Warranty and Forging/Casting Technique Hitachi EX60-2 Medium Sized Track Carrier Rollers with 12-18 Months Warranty and Forging/Casting Technique Hitachi EX60-2 Medium Sized Track Carrier Rollers with 12-18 Months Warranty and Forging/Casting Technique

Hitachi EX60-2 Medium Sized Track Carrier Rollers with 12-18 Months Warranty and Forging/Casting Technique

تفاصيل المنتج:
مكان المنشأ: الصين (البر الرئيسي)
اسم العلامة التجارية: YT
رقم الموديل: EX60-2
شروط الدفع والشحن:
الحد الأدنى لكمية: 1pcs
الأسعار: negotiable
تفاصيل التغليف: عبوة التصدير القياسية
وقت التسليم: 7-30 أيام
شروط الدفع: L/C ، T/T.
القدرة على العرض: 10000 pcs/month
ﺎﺘﺼﻟ ﺍﻶﻧ

معلومات تفصيلية
مادة: 40mn2、40mnb 、 50mn تقنية: تزوير/صب
جودة: المعالجة الحرارية HRC 52-56 لون: أصفر أو أسود أو الزبون مطلوب
وقت الضمان: 12-18 شهرًا حزمة النقل: البليت الخشبي
رمز HS: 8431499000 مواصفة: متوسط الحجم
إبراز:

12-18 Months Warranty Track Carrier Rollers,Forging/Casting Technique Undercarriage Rollers,Medium Sized Excavator Carrier Rollers

,

Forging/Casting Technique Undercarriage Rollers

,

Medium Sized Excavator Carrier Rollers

منتوج وصف

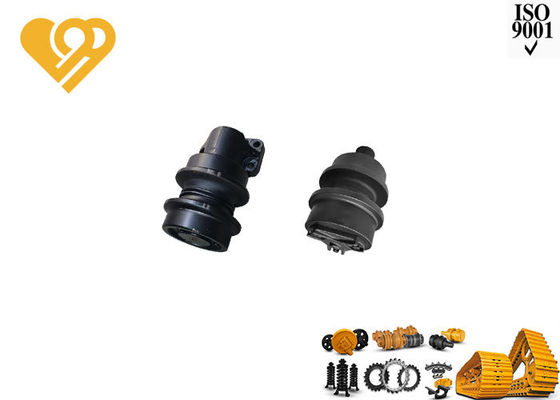

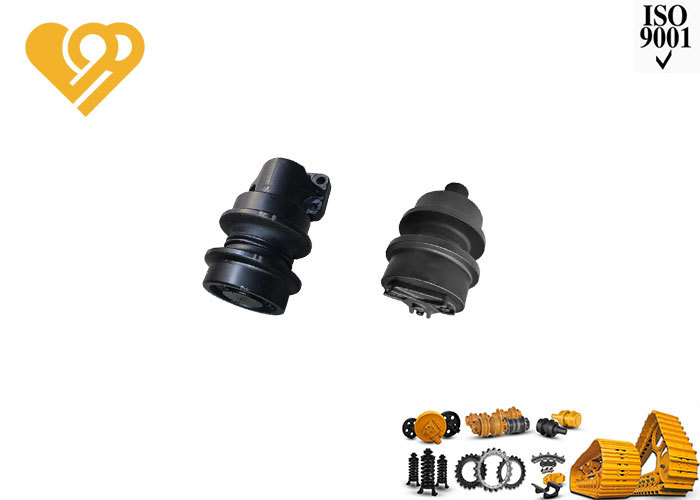

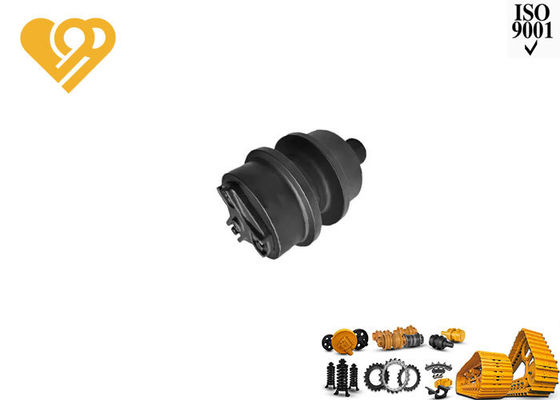

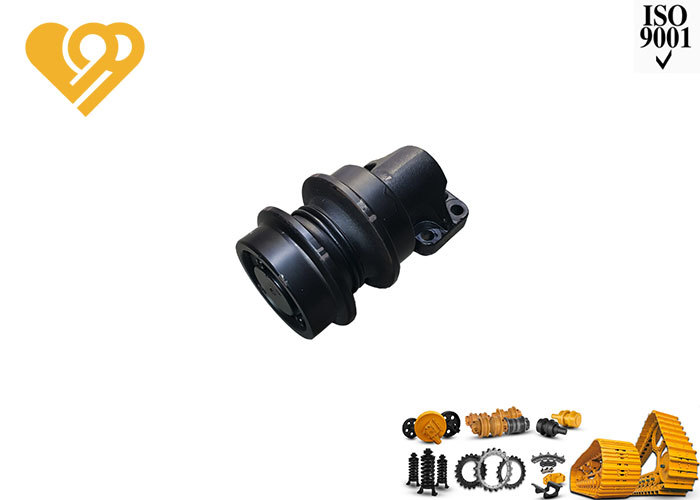

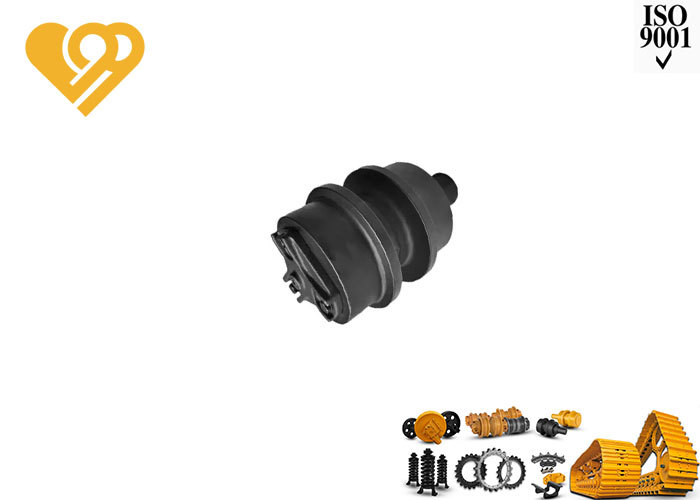

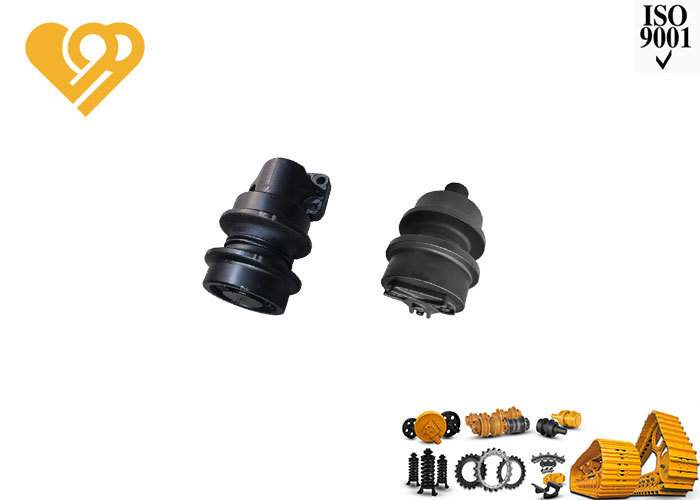

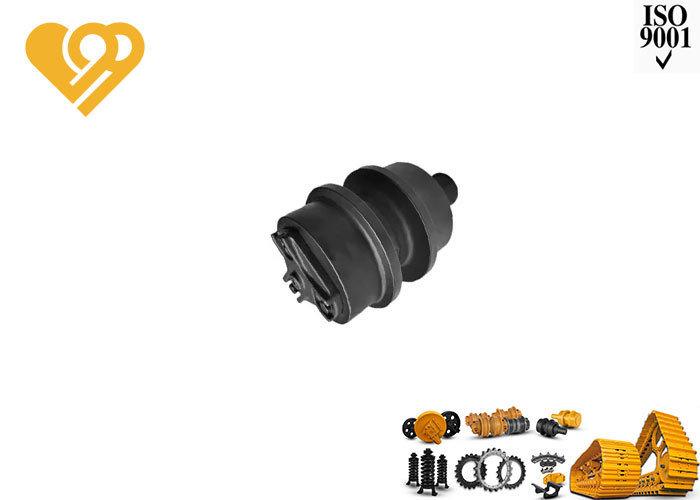

Hitachi Construction Machinery Mini Undercarriage Component Parts EX60-2 Track Carrier Rollers
What is a Roller?
  • The track roller supports the conveyor belt and material weight, accounting for 35% of total conveyor cost and generating over 70% of resistance, making roller quality critically important.
  • Available in materials 40Mn2, 40MnB, or 50Mn depending on working conditions. Precision forged and heat-treated to achieve surface hardness of HRC52-6 with hardened layer depth of 7-10mm (HRC45) for durability, impact resistance, and wear resistance.
  • High-quality floating seals and lubrication system adapt to temperatures from -45℃ to 120℃, requiring no maintenance under severe conditions.
Carrier Rollers Features
  • Quench-tempering processes ensure excellent mechanical properties, high strength, and superior wear resistance.
  • Surface hardness HRC40-55 reduces wear and extends service life.
  • Precision engineering, careful heat-treatment, and lifetime sealing system guarantee long operational life.
  • Forged deep hardening steel shells resist bell mouthing, with all rollers carrying warranty.
Main Dimensions of Installation
Hitachi EX60-2 Medium Sized Track Carrier Rollers with 12-18 Months Warranty and Forging/Casting Technique 0
Main Parameters
Brand Model A B E G M L
HITACHI EX30 108 85 112 172
HITACHI EX60-1 145 120 152 248 218 15
HITACHI EX60-2/3 145 120 152 248 216 15
HITACHI EX60-5 135 112 140 227 197 15
HITACHI EX100 160 135 184 285 250 17.5
HITACHI EX120 160 135 184 285 250 17.5
*Note: The models above are for reference only. We can supply additional models upon request. Please contact us with your specific requirements.
Our Advantages
  • World-class quality standards
  • Factory-direct pricing
  • 35 years experience in excavator and bulldozer parts manufacturing
  • Flexible payment terms (T/T, L/C)
  • Fast delivery within 30 days
  • Professional sales team and quality inspection
  • Comprehensive after-sales support including video technical assistance and 24/7 online support
