منزل المنتجاتالجمعية المهمل الأماميةSUMITOMO SH200 Model Front Idler Assembly with 8-12mm Hardness Depth and 10-15days Availability
SUMITOMO SH200 Model Front Idler Assembly with 8-12mm Hardness Depth and 10-15days Availability
SUMITOMO SH200 Model Front Idler Assembly with 8-12mm Hardness Depth and 10-15days Availability SUMITOMO SH200 Model Front Idler Assembly with 8-12mm Hardness Depth and 10-15days Availability SUMITOMO SH200 Model Front Idler Assembly with 8-12mm Hardness Depth and 10-15days Availability

SUMITOMO SH200 Model Front Idler Assembly with 8-12mm Hardness Depth and 10-15days Availability

تفاصيل المنتج:
مكان المنشأ: الصين (البر الرئيسي)
اسم العلامة التجارية: YT
إصدار الشهادات: ISO9001
رقم الموديل: SH200
شروط الدفع والشحن:
الحد الأدنى لكمية: 1pcs
الأسعار: negotiable
تفاصيل التغليف: عبوة التصدير القياسية
وقت التسليم: 7-30 أيام
شروط الدفع: L/C ، T/T.
القدرة على العرض: 10000 pcs/month
ﺎﺘﺼﻟ ﺍﻶﻧ

معلومات تفصيلية
نموذج لا.: SH200 إصدار الشهادات: ISO9001
اسم المنتج: عجلة العاطل أو العاطل ينهي: سلس
عمق الصلابة: 8-12mm أصل: الصين
لون: أصفر/أسود توافر: 10-15 أيام
إبراز:

SH200 Model Front Idler Assembly,8-12mm Hardness Depth Idler Wheel,10-15days Availability Undercarriage Spare Parts

,

8-12mm Hardness Depth Idler Wheel

,

10-15days Availability Undercarriage Spare Parts

منتوج وصف

SUMITOMO SH200 Construction Machinery Bulldozer OEM Undercarriage Spare Parts Heavy Duty Front Idler Assembly

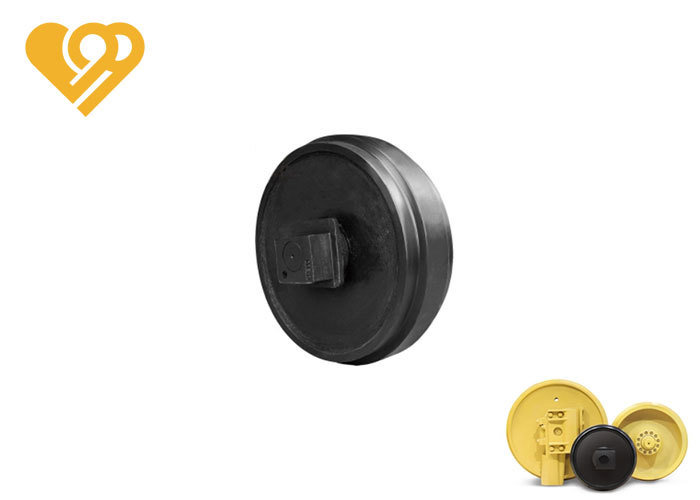

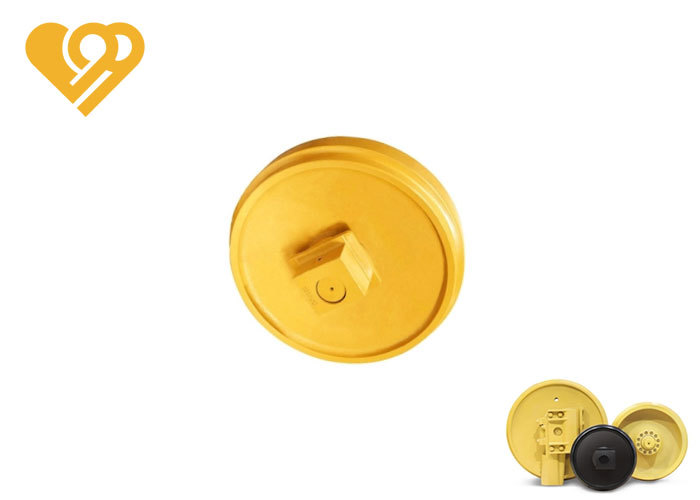

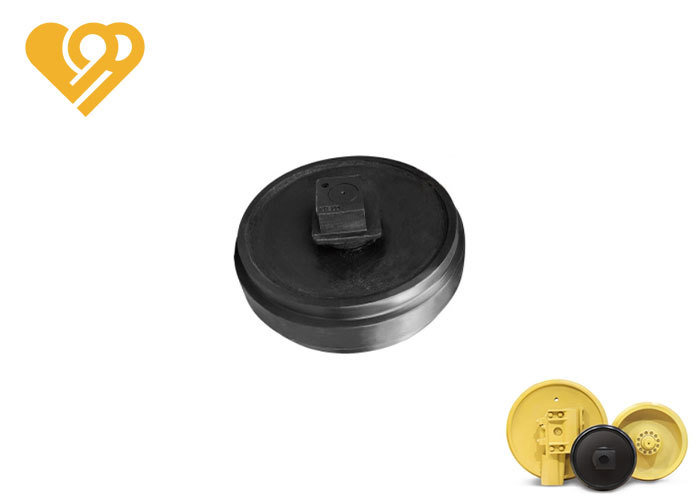

The SUMITOMO SH200 Front Idler Assembly combines advanced design and precision manufacturing for superior durability and safety in demanding construction environments.
Idler Function and Construction
CHT idler combines advanced design and precision manufacturing for superior durability and safety. Its idler-axle keyed joint expands bearing surface and enhances torque transmission, boosting reliability and aligning service life with undercarriage parts to avoid uneven wear. The axle rotates in fixed bearings to reduce friction and wear, further extending track life.
Manufactured through alkali phenolic resin sand casting or sodium silicate-bonded sand casting for robust, stable parts, it undergoes specialized heat treatment to achieve minimum HRC48-58 surface hardness with 4-6mm hardened layer (HRC45), delivering strong impact and wear resistance in harsh mining and construction conditions. Final refinement on a CK5110 large-scale precision CNC vertical lathe ensures precise dimensions and quality surface finishes for stable performance and long service life.
Key Features and Benefits
Tech-Driven Durability: Built to Outlast
  • 50% reduced bearing pressure: Cuts bearing load drastically, extending component life by 2x or more
  • Splined idler-shaft connection: Ensures reliability while aligning idler lifespan with other undercarriage components
  • Heavy-duty rock guard: Protects against dirt, rubble, and debris to prevent damage
Efficiency-Focused Design: Minimize Downtime, Maximize Output
  • Detachable bearing blocks with bushings: Serviceable without disassembling the track, reducing maintenance time by up to 40%
  • Dedicated lubrication injectors: Deliver precise lubrication to high-wear surfaces to prevent failures
  • Expanded bearing surface + optimized oil flow: Enhances track stability in rough conditions
Cost-Smart Engineering: Lower TCO, Higher Returns
  • Rotating shaft + stationary bushings: Reduces contact stress and wear
  • Prolonged track system life: Lowers operational costs by reducing downtime and part replacements
  • 50% less bearing stress: Fewer bearing failures and associated repair costs
Design and Installation
SUMITOMO SH200 Model Front Idler Assembly with 8-12mm Hardness Depth and 10-15days Availability 0 SUMITOMO SH200 Model Front Idler Assembly with 8-12mm Hardness Depth and 10-15days Availability 1 SUMITOMO SH200 Model Front Idler Assembly with 8-12mm Hardness Depth and 10-15days Availability 2
Production Processes
SUMITOMO SH200 Model Front Idler Assembly with 8-12mm Hardness Depth and 10-15days Availability 3
Our Advantages
  • World-class quality components
  • Factory-direct pricing
  • 35 years experience in heavy equipment parts manufacturing
  • Fast delivery within 30 days
  • Professional sales and technical support
  • Comprehensive after-sales services including 24/7 support
Are you looking for high-quality excavator idlers? As professional manufacturers with over 30 years of experience, we guarantee the performance and durability of our products. Contact us today for your heavy equipment parts needs.
